SS316L Clamp Flanged Stainless Steel Sight Glass DIN100 For Pharmaceutical

SS316L Clamp Flanged Stainless Steel Sight Glass DIN100 For Pharmaceutical

    • SS316L Clamp Flanged Stainless Steel Sight Glass DIN100 For Pharmaceutical
    • SS316L Clamp Flanged Stainless Steel Sight Glass DIN100 For Pharmaceutical
    • SS316L Clamp Flanged Stainless Steel Sight Glass DIN100 For Pharmaceutical
  • SS316L Clamp Flanged Stainless Steel Sight Glass DIN100 For Pharmaceutical

    제품 상세 정보:

    원래 장소: 중국
    브랜드 이름: DONJOY
    인증: CE/FDA/ISO/3A
    모델 번호: NO.VSJ303Y1-DIN

    결제 및 배송 조건:

    최소 주문 수량: 1
    포장 세부 사항: 판지, 나무로 되는 케이스
    지불 조건: T/T,L/C, 신용카드예요
    지금 연락
    상세 제품 설명
    브랜드: DONJOY 사이즈: DN65 - DN150, 3일부터 6일까지
    Stanadard: / 3A / SM / ISO를 울리세요 연결: , 죄는 용접하는, 실
    내부 끝마무리: 경면 가공 기타 등등. 클램프: 선택적입니다
    더 가벼운: 선택할 수 있는
    하이 라이트:

    SS316L Stainless Steel Sight Glass

    ,

    Stainless Steel Sight Glass DIN100

    ,

    Clamp Flanged Sight Glass

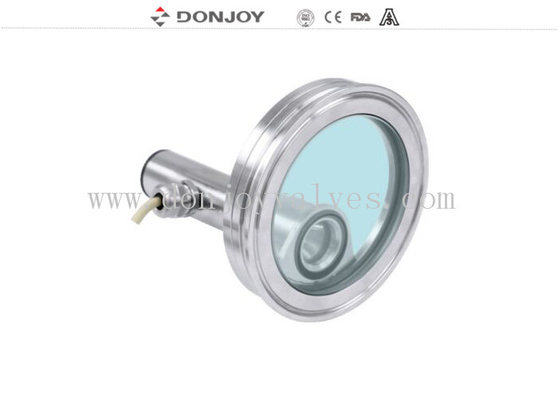

    Pharmaceutical industry DIN100 SS316L Clamp flanged sight glass



    Brief Instruction

    Sight Glass

    Size:DN80-DN200,3"-8"

    Type:  DC24V,NO.5 Battery

    Gasket: EPDM,PTFE

    Working Pressure:10Bar



    Specification

    Product Name:

    Pharmaceutical industry DIN100 SS316L Clamp flanged sight glass

    Valve Body Material:

    SS304/SS316L/1.4301/1.4404

    O ring:

    EPDM FPM

    Material connecting with other part:



    1.4301(304); 1.4404(316L)

    Sight glass:

    tempered glass

    Max.temperature:

    120 degree

    Battery:

    use high light flashlight,rechargeable lithium battery(220V Battery for 18650); can use AC220V/110V power supply lighting.

    Availably connection:

    Clamp, Thread, weld, Flange

    Availably standard:

    DIN, SMS, 3A, ISO

    Certification:

    3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008

    Application scope:

    Dairy, food, beverage, pharmacy, cosmetic, etc



    Suitable industry
    sight-glass is comprised of stainless steel frame and glass.



    It is used wiewing the biologic reactor, blender in laboratory filter, processing container, pipeline and other closed container, especially apply in pharmacy, food and beverage processing, such as the brewery, dairy.


    Advantaged design
    Full bore Design
    360degree viewing angle
    Can be used in vertical or horizontal position

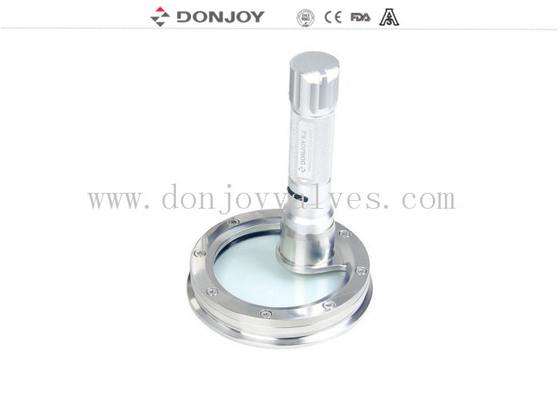

    Call with light and wipper.


    Drawing

    SS316L Clamp Flanged Stainless Steel Sight Glass DIN100 For Pharmaceutical 0





    Various Selection of Union Sighlt glass

    SS316L Clamp Flanged Stainless Steel Sight Glass DIN100 For Pharmaceutical 1
